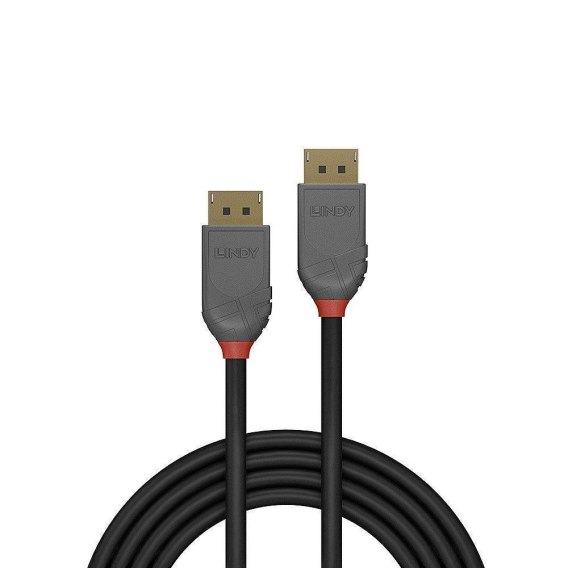

From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@144Hz 4:2:2 10bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.
- Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
- Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@144Hz 4:2:2 10bit
- Robust ABS housing 24K gold plated connectors and contacts
- Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
- DisplayPort 1.4, 32.4Gbps; 10 year warranty
Parametry:
Szerokość produktu:
21 mm
Certyfikaty:
RoHS, REACH, UL
Typ przewodu:
Kabel okrągły
Rodzaj opakowania:
Torebka foliowa
Głębokość produktu:
38.9 mm
Wysokość produktu:
13.6 mm
Description:
From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line DisplayPort cables are premium connectio
Vendor Homepage:
https://www.lindy.co.uk/cables-adapters-c1/audio-video-c107/2m-displayport-1-4-cable-anthra-line-p11071
Objętność brutto:
0.0004312 cubm
Jednostkowa waga brutto:
0.15 kg
Summary:
Lindy 36482. Długość kabla: 2 m, Złączka 1: DisplayPort, Złączka 2: DisplayPort. Certyfikaty: RoHS, REACH, UL. Średnica przewodu: 7,3 mm, Wymiary złącza 1 (SxGxW): 21 x 38,9 x 13,6 mm, Promień gięcia (min.): 5,84 cm. Rodzaj opakowania: Torebka foliowa. Gł
Kod zharmonizowanego systemu (HS):
84733080
Zakres temperatur (eksploatacja):
-20 - 80 °C
Szybkość przesyłania danych:
32.4 Gbit/s
Obsługiwane rozdzielczości grafiki:
4096 x 2160/7680 x 4320
Średnica przewodu:
7.3 mm
Materiał pokrycia styków:
Złoto
Wymiary złącza 1 (SxGxW):
21 x 38.9 x 13.6 mm
Tworzywo kabla:
Miedź cynowa
Zakres temperatur (przechowywanie):
-25 - 85 °C
Maks. rozdzielczość:
7680 x 4320 px
Materiał obudowy złącza:
Kopolimer akrylonitrylo-butadieno-styrenowy (ABS)
Materiał płaszcza:
Polichlorek winylu (PVC)
Promień gięcia (min.):
58.4 mm
Materiał kontaktowy:
Brąz fosforowy
Tłumienność nominalna:
100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Próbkowanie kolorów:
4:2:2
